We manufacture Brass Compression Fittings like Elbow Tube To FPT, Elbow Tube to MPT, Elbow 45° Tube to MPT as per customer specifications and Drawing.

Specification of Brass Compression Fittings

Material : Brass to BS 2874 /2872

Threads : BSP BSPT NPT NPTF metric threaded fittings

Finish : Brass natural, Electro-Tinned, Nickel etc.

Available in many combinations of sizes, multi-step reductions, and shapes other than above mentioned. We are engaged in offering a wide range of compression fitting that are designed from high grade raw material and are suitable for various industrial applications. Evaporative Cooler, Long Nut, Plastic Tube, Self Aligning, Standard Compression fittings, Threaded Sleeve, Transition Fittings.

Note :- Conversion Table Applicable To all Fittings

Inches	1/16	1/8	3/16	1/4	5/16	3/8	7/16	1/2	5/8	3/4	3/4
mm	1.59	3.18	4.76	6.35	7.94	9.53	11.11	12.70	15.88	19.05	25.4

Click Below for more details

Stainless Stee(SS) 316/304 British Parallel (BSPP) Fittings (Also Available in Brass)
(Equivalent to European G Thread)

1/8" SS 316 / 304 BSPP Fittings

Part No.

A
To Suit

B
Nut A/F

SSPP1801

1mm

7.9

8.0

9.6

11.1

22.1

14.2

SSPP1802

1.5mm

7.9

8.0

9.6

11.1

22.1

14.2

SSPP1803

2.0mm

7.9

8.0

9.6

11.1

22.1

14.2

SSPP1804

1/16"

11.1

8.0

9.6

11.1

22.1

14.2

SSPP1805

3mm

11.1

12.0

9.6

11.1

23.8

14.2

SSPP1806

1/8"

12.7

12.0

9.6

11.1

23.8

14.2

SSPP1807

4mm

12.7

12.0

9.6

11.1

24.9

14.2

SSPP1808

4.5mm

12.7

12.0

9.6

11.1

24.9

14.2

SSPP1809

3/16"

14.2

12.0

9.6

11.1

24.9

14.2

SSPP18010

6mm

14.2

12.7

9.6

11.1

25.4

14.2

SSPP18011

1/4"

15.8

12.7

9.6

11.1

25.4

14.2

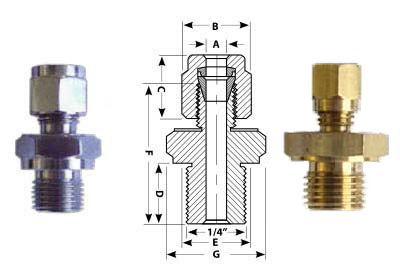

1/4" SS 316 / 304 BSPP Fittings


Part No.	A To Suit	B Nut A/F	C	D	E	F	G

SSPP1401	1.5mm	8.0	8.0	11.2	18.2	26.7	19.1
SSPP1402	2.0mm	8.0	8.0	11.2	18.2	26.7	19.1
SSPP1403	3mm	11.1	12.0	11.2	18.2	28.6	19.1
SSPP1404	1/8"	11.1	12.0	11.2	18.2	28.1	19.1
SSPP1405	4mm	12.7	12.0	11.2	18.2	29.5	19.1
SSPP1406	4.5mm	12.7	12.0	11.2	18.2	29.5	19.1
SSPP1407	3/16"	12.7	12.0	11.2	18.2	29.0	19.1
SSPP1408	6mm	14.2	12.7	11.2	18.2	30.0	19.1
SSPP1409	1/4"	14.2	12.7	11.2	18.2	30.5	19.1
SSPP14010	8mm	15.2	12.7	11.2	18.2	30.0	19.1

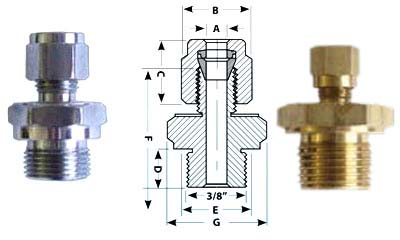

3/8" SS 316 / 304 BSPP Fittings


Part No.	A To Suit	B Nut A/F	C	D	E	F	G

SSPP3801	3mm	11.1	12.0	11.1	21.7	29.5	2.2
SSPP3802	4mm	12.7	12.0	11.1	21.7	30.4	2.2
SSPP3803	4.5mm	12.7	12.0	11.1	21.7	30.4	2.2
SSPP3804	3/16"	12.7	12.0	11.1	21.7	30.4	2.2
SSPP3805	5.5mm	14.2	12.7	11.1	21.7	31.4	2.2
SSPP3806	6mm	14.2	12.7	11.1	21.7	31.4	2.2
SSPP3807	1/4"	14.2	12.7	11.1	21.4	31.2	2.2
SSPP3808	5/16"	15.8	13.5	11.1	21.7	32.1	2.2
SSPP3809	8mm	15.8	13.5	11.1	21.7	32.1	2.2
SSPP38010	3/8"	15.8	14.2	11.1	21.4	32.2	2.2
SSPP38011	22.2	17.5	11.1	21.4	32.4	2.2

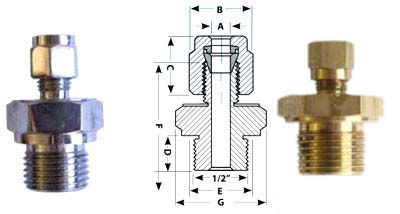

1/2" SS 316 / 304 BSPP Fittings


Part No.	A To Suit	B Nut A/F	C	D	E	F	G

SSPP1201	3mm	11.1	12.0	14.2	25.8	35.6	27.0
SSPP1202	1/8"	11.1	12.0	14.2	25.8	35.6	27.0
SSPP1203	4mm	12.7	12.0	14.2	25.8	35.6	27.0
SSPP1204	4.5mm	12.7	12.0	14.2	25.8	35.6	27.0
SSPP1205	3/16"	12.7	12.0	14.2	25.8	35.6	27.0
SSPP1206	5.5mm	14.2	12.7	14.2	25.8	37.5	27.0
SSPP1207	6mm	14.2	12.7	14.2	25.8	37.5	27.0
SSPP1208	1/4"	14.2	12.7	14.2	25.8	37.5	27.0
SSPP1209	5/16"	15.8	13.5	14.2	25.8	38.2	27.0
SSPP12010	8mm	15.8	13.5	14.2	25.8	38.2	27.0
SSPP12011	9mm	17.5	14.2	14.2	25.8	38.7	27.0
SSPP12012	3/8"	17.5	14.2	14.2	25.8	38.7	27.0
SSPP12013	10mm	22.2	14.2	14.2	25.8	39.5	27.0
SSPP12014	11mm	22.2	17.5	14.2	25.8	39.5	27.0
SSPP12015	7/16”	22.2	17.5	14.2	25.8	38.9	27.0
SSPP12016	12mm	22.2	17.5	14.2	25.8	39.5	27.0
SSPP12017	1/2"	25.4	17.5	14.2	25.8	38.9	27.0
SSPP12018	14mm	25.4	17.5	14.2	25.8	38.8	27.0
SSPP12019	15mm	27.0	17.5	14.2	25.8	38.8	27.0
SSPP12020	5/8”		17.5	14.2	25.8	38.8	27.0

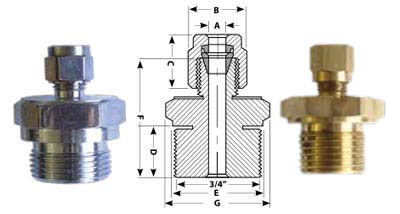

3/4" SS 316 / 304 BSPP Fittings


Part No.	A To Suit	B Nut A/F	C	D	E	F	G

SSPP3401	6mm	14.2	12.7	16.0	31.0	41.5	31.8
SSPP3402	1/4"	14.2	12.7	16.0	31.0	41.5	31.8
SSPP3403	5/16"	15.8	13.5	16.0	31.0	42.2	31.8
SSPP3404	8mm	15.8	13.5	16.0	31.0	42.2	31.8
SSPP3405	3/8"	17.5	14.2	16.0	31.0	42.2	31.8
SSPP3406	12mm	22.2	17.5	16.0	31.0	42.7	31.8
SSPP3406	1/2"	22.2	17.5	16.0	31.0	42.2	31.8
SSPP3407	15mm	25.4	17.5	16.0	31.0	42.7	31.8
SSPP3408	5/8"	27.0	17.5	16.0	31.0	42.2	31.8
SSPP3409	3/4"	28.5	17.5	16.0	31.0	42.5	31.8

1" SS 316 / 304 BSPP Fittings


Part No.	A To Suit	B Nut A/F	C	D	E	F	G

SSPP101	6mm	14.2	12.7	18.2	40.5	42.7	41.3
SSPP102	1/4"	14.2	12.7	18.2	40.5	42.2	41.3
SSPP103	5/16"	15.8	13.5	18.2	40.5	43.4	41.3
SSPP104	8mm	15.8	13.5	18.2	40.5	43.4	41.3
SSPP105	12mm	22.2	17.5	18.2	40.5	43.9	41.3
SSPP106	1/2"	22.2	17.5	18.2	40.5	43.4	41.3
SSPP107	15mm	25.4	17.5	18.2	40.5	43.9	41.3
SSPP108	17.5mm	25.4	17.5	18.2	40.5	43.9	41.3
SSPP109	3/4"	28.5	17.5	18.2	40.5	43.7	41.3
SSPP1010	1"	38.1	20.5	18.2	40.5	47.8	41.3

* All The Above SS 316 / 304 Compressions Fittings Are Also Available In Brass

Stainless Steel (SS) 316/304 British Tarered (BSPT) Fittings (Also Availale In Brass) (Equivalent to European R Thread)

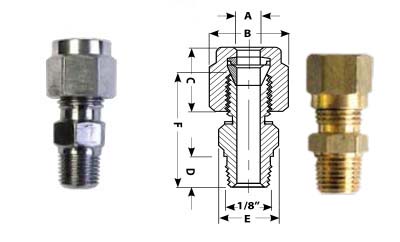

1/8" SS 316 / 304 BSPT Fittings


Part No.	A To Suit	B Nut A/F	C	D	E	F

SSPT1801	1mm	7.9	8.0	9.6	11.1	22.1
SSPT1802	1.5mm	7.9	8.0	9.6	11.1	22.1
SSPT1803	2.0mm	7.9	8.0	9.6	11.1	22.1
SSPT1804	1/16"	7.9	8.0	9.6	11.1	22.1
SSPT1805	3mm	11.1	12.0	9.6	11.1	23.8
SSPT1806	1/8"	11.1	12.0	9.6	11.1	23.8
SSPT1807	4mm	12.7	12.0	9.6	11.1	24.9
SSPT1808	4.5mm	12.7	12.0	9.6	11.1	24.9
SSPT1809	3/16"	11.1	12.0	9.6	11.1	24.9
SSPT18010	6mm	14.2	12.7	9.6	11.1	25.4
SSPT18011	1/4"	14.2	12.7	9.6	11.1	25.4

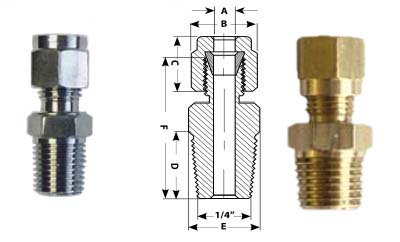

1/4" SS 316 / 304 BSPT Fittings


Part No.	A To Suit	B Nut A/F	C	D	E	F

SSPT1401	1.5mm	8.0	8.0	14.2	14.2	27.3
SSPT1402	2.0mm	8.0	8.0	14.2	14.2	27.3
SSPT1403	3mm	11.1	12.0	14.2	14.2	28.9
SSPT1404	1/8"	11.1	12.0	14.2	14.2	28.9
SSPT1405	4mm	12.7	12.0	14.2	14.2	29.5
SSPT1406	4.5mm	12.7	12.0	14.2	14.2	29.5
SSPT1407	3/16"	12.7	12.0	14.2	14.2	29.5
SSPT1408	6mm	14.3	12.7	14.2	14.2	30.7
SSPT1409	1/4"	14.2	12.7	14.2	14.2	30.7
SSPT14010	8mm	15.8	13.5	14.2	14.2	31.2

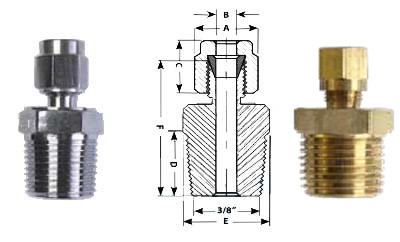

3/8" SS 316 / 304 BSPT Fittings


Part No.	A To Suit	B Nut A/F	C	D	E	F

SSPT3801	3mm	11.1	12.0	14.2	17.5	29.5
SSPT3802	1/8"	11.1	12.0	14.2	17.5	29.5
SSPT3803	4mm	12.7	12.0	14.2	17.5	30.5
SSPT3804	4.5mm	12.7	12.0	14.2	17.5	30.5
SSPT3805	3/16"	12.7	12.0	14.2	17.5	30.5
SSPT3806	6mm	14.3	12.0	14.2	17.5	31.0
SSPT3807	1/4"	14.3	12.0	14.2	17.5	31.0
SSPT3808	5/16"	15.9	13.5	14.2	17.5	32.2
SSPT3809	8mm	15.9	13.5	14.2	17.5	32.2

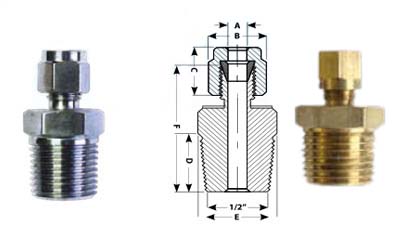

1/2” BSPT Fittings


Part No.	A To Suit	B Nut A/F	C	D	E	F

SSPT1201	3mm	11.1	12.0	19.0	22.2	35.5
SSPT1202	1/8"	11.1	12.0	19.0	22.2	35.5
SSPT1203	4mm	12.7	12.0	19.0	22.2	36.5
SSPT1204	4.5mm	12.7	12.0	19.0	22.2	36.5
SSPT1205	3/16"	12.7	12.0	19.0	22.2	36.5
SSPT1206	6mm	14.2	12.7	19.0	22.2	37.3
SSPT1207	1/4"	14.2	12.7	19.0	22.2	37.3
SSPT1208	5/16"	15.8	13.5	19.0	22.2	38.2
SSPT1209	8mm	15.8	13.5	19.0	22.2	38.2
SSPT12010	3/8"	17.5	14.2	19.0	22.2	38.7
SSPT12011	10mm	17.5	14.2	19.0	22.2	38.7
SSPT12012	12mm	22.2	17.5	19.0	22.2	38.7
SSPT12013	1/2"	22.2	17.5	19.0	22.2	38.7
SSPT12014	15mm	25.4	17.5	19.0	22.2	38.7

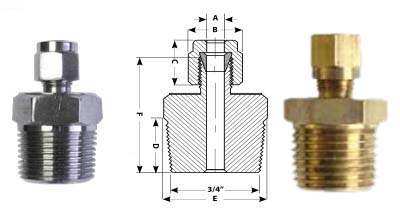

3/4” BSPT Fittings


Part No.	A To Suit	B Nut A/F	C	D	E	F

SSPT3401	6mm	14.2	12.7	19.0	27.0	38.6
SSPT3402	1/4"	14.2	12.7	19.0	27.0	38.6
SSPT3403	5/16"	15.8	13.5	19.0	27.0	39.8
SSPT3404	8mm	15.8	13.5	19.0	27.0	39.8
SSPT3405	11mm	22.2	17.5	19.0	27.0	40.3
SSPT3406	12mm	22.2	17.5	19.0	27.0	40.3
SSPT3407	1/2"	22.2	17.5	19.0	27.0	40.3
SSPT3408	15mm	25.4	17.5	19.0	27.0	40.3
SSPT3409	1"	38.1	20.5	19.0	27.0	42.2

1” BSPT Fittings


Part No.	A To Suit	B Nut A/F	C	D	E	F

SSPT101	6mm	14.2	12.7	23.5	34.9	42.0
SSPT102	1/4"	14.2	12.7	23.5	34.9	42.0
SSPT103	1"	38.1	20.5	23.5	34.9	46.7

Stainless Steel (SS) 316 American Pipe Thread (NPT) (Also Available In Brass)

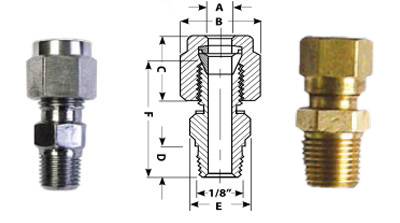

1/8” SS 316/304 NPT Fittings


Part No.	A To Suit	B Nut A/F	C	D	E	F

SSNPT1801	1mm	7.9	8.0	9.6	11.1	22.1
SSNPT1802	1.5mm	7.9	8.0	9.6	11.1	22.1
SSNPT1803	2mm	7.9	8.0	9.6	11.1	22.1
SSNPT1804	1/16"	7.9	8.0	9.6	11.1	22.1
SSNPT1805	3mm	11.1	12.0	9.6	11.1	23.8
SSNPT1806	1/8"	11.1	12.0	9.6	11.1	23.8
SSNPT1807	4mm	12.7	12.0	9.6	11.1	24.9
SSNPT1808	4.5mm	12.7	12.0	9.6	11.1	24.9
SSNPT1809	3/16"	12.7	12.0	9.6	11.1	24.9
SSNPT18010	6mm	14.2	12.7	9.6	11.1	25.4
SSNPT18011	1/4"	14.2	12.7	9.6	11.1	25.4

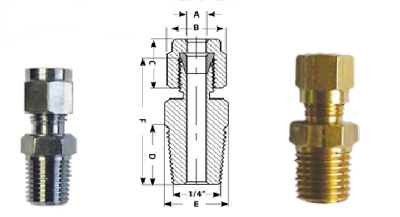

1/4” SS 316/304 NPT Fittings


Part No.	A To Suit	B Nut A/F	C	D	E	F

SSNPT1401	1.5mm	8.0	8.0	14.2	14.2	28.0
SSNPT1402	2mm	8.0	8.0	14.2	14.2	28.0
SSNPT1403	3mm	11.1	12.0	14.2	14.2	28.9
SSNPT1404	1/8"	11.1	12.0	14.2	14.2	28.9
SSNPT1405	4mm	12.7	12.0	14.2	14.2	29.5
SSNPT1406	4.5mm	12.7	12.0	14.2	14.2	29.5
SSNPT1407	5mm	12.7	12.0	14.2	14.2	29.5
SSNPT1408	3/16"	12.7	12.0	14.2	14.2	29.5
SSNPT1409	6mm	14.2	12.7	14.2	14.2	30.7
SSNPT14010	1/4"	14.2	12.7	14.2	14.2	30.7
SSNPT14011	8mm	15.8	13.5	14.2	14.2	30.2

3/8” SS 316/304 NPT Fittings


Part No.	A To Suit	B Nut A/F	C	D	E	F

SSNPT3801	3mm	11.1	12.0	14.2	17.45	29.5
SSNPT3802	1/8"	11.1	12.0	14.2	17.45	29.5
SSNPT3803	4mm	12.7	12.0	14.2	17.45	29.5
SSNPT3804	4.5mm	12.7	12.0	14.2	17.45	29.5
SSNPT3805	3/16"	12.7	12.0	14.2	17.45	29.5
SSNPT3806	6mm	14.2	12.7	14.2	17.45	29.5
SSNPT3807	1/4"	14.2	12.7	14.2	17.45	29.5
SSNPT3808	5/16"	15.8	13.5	14.2	17.45	29.5
SSNPT3809	8mm	15.8	13.5	14.2	17.45	29.5

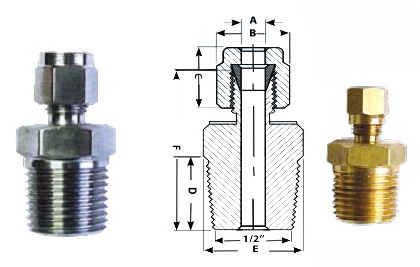

1/2” SS 316/304 NPT Fittings


Part No.	A To Suit	B Nut A/F	C	D	E	F

SSNPT1201	3mm	11.1	12.0	19.0	22.2	35.5
SSNPT1202	1/8"	11.1	12.0	19.0	22.2	35.5
SSNPT1203	4mm	12.7	12.0	19.0	22.2	36.5
SSNPT1204	4.5mm	12.7	12.0	19.0	22.2	36.5
SSNPT1205	3/16"	12.7	12.0	19.0	22.2	36.5
SSNPT1206	6mm	14.2	12.7	19.0	22.2	36.5
SSNPT1207	1/4"	14.2	12.7	19.0	22.2	37.3
SSNPT1208	5/16"	15.8	13.5	19.0	22.2	37.3
SSNPT1209	8mm	15.8	13.5	19.0	22.2	38.2
SSNPT12010	3/8"	17.45	14.2	19.0	22.2	38.2
SSNPT12011	10mm	17.45	14.2	19.0	22.2	38.7
SSNPT12012	12mm	22.2	17.5	19.0	22.2	38.7
SSNPT12013	1/2"	22.2	17.5	19.0	22.2	38.7
SSNPT12014	13mm	22.2	17.5	19.0	22.2	38.7
SSNPT12015	14mm	25.4	17.5	19.0	22.2	38.7
SSNPT12016	15mm	25.4	17.5	19.0	22.2	38.7

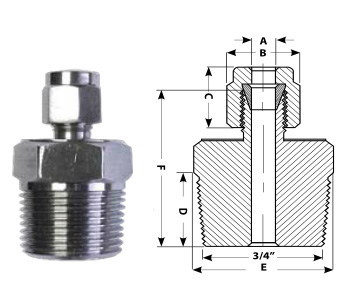

3/4” SS 316/304 NPT Fittings


Part No.	A To Suit	B Nut A/F	C	D	E	F

SSNPT3401	6mm	14.2	12.7	19.0	27.0	38.6
SSNPT3402	1/4"	14.2	12.7	19.0	27.0	38.6
SSNPT3403	5/16"	15.8	13.5	19.0	27.0	39.8
SSNPT3404	8mm	15.8	13.5	19.0	27.0	39.8
SSNPT3405	12mm	22.2	17.5	19.0	27.0	40.3
SSNPT3406	1/2"	22.2	17.5	19.0	27.0	40.3
SSNPT3407	15mm	25.4	17.5	19.0	27.0	40.3
SSNPT3408	21.3mm	32.0	17.5	19.0	27.0	41.6
SSNPT3409	1"	38.1	20.5	19.0	27.0	42.2

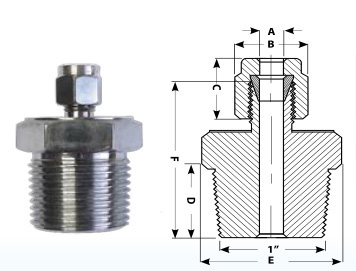

1” SS 316/304 NPT Fittings


Part No.	A To Suit	B Nut A/F	C	D	E	F

SSNPT01	6.0	14.2	12.7	23.5	34.9	42
SSNPT02	1/4"	14.2	12.7	23.5	34.9	42
SSNPT03	21.3mm	32.0	17.5	23.5	34.9	46.1
SSNPT04	1"	38.1	20.5	23.5	34.9	46.7

Stainless Steel (SS) 316 Metric Fittings (Also Available In Brass)

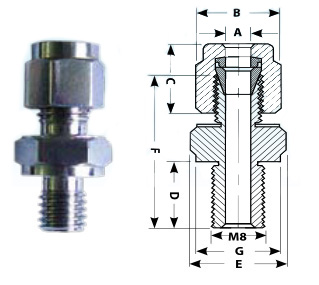

M8 SS 316/304 Metric Fittings


Part No.	Thread	A To Suit	B Nut A/F	C	D	E	F	G

SSM801	M8x1	1mm	7.9	8.0	7.5	14.2	22.0	13.6
SSM802	M8x1	1.5mm	7.9	8.0	7.5	14.2	22.0	13.6
SSM803	M8x1	2mm	7.9	8.0	7.5	14.2	21.0	13.6
SSM804	M8x1	1/8"	11.1	12.0	7.5	14.2	23.3	13.6
SSM805	M8x1.25	1/8"	11.1	12.0	7.5	14.2	23.3	13.6
SSM806	M8x1	3mm	11.2	12.0	7.5	14.2	25.0	13.6
SSM807	M8x1	4mm	12.7	12.0	7.5	14.2	25.0	13.6
SSM808	M8x1	4.5mm	12.7	12.0	7.5	14.2	25.0	13.6

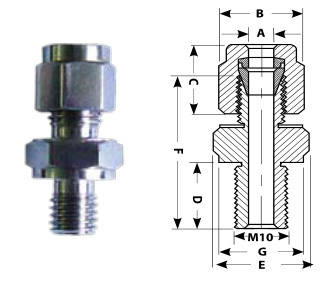

M10 SS 316/304 Metric Fittings


Part No.	Thread	A To Suit	B Nut A/F	C	D	E	F	G

SSM1001	M10x1	3mm	11.1	12.0	11.0	17.5	27.5	16.5
SSM1002	M10x1	4.5mm	12.7	12.0	11.0	17.5	28.0	16.5
SSM1003	M10x1	6mm	14.2	12.7	11.0	17.5	29.0	16.5

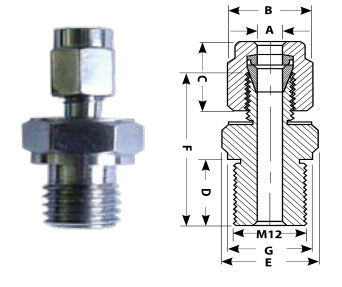

M12 SS 316/304 Metric Fittings


Part No.	Thread	A To Suit	B Nut A/F	C	D	E	F	G

SSM1201	M12X1	1/8"	11.1	12.0	11.0	17.45	27.2	16.3
SSM1202	M12X1	5.5mm	14.2	12.7	11.0	17.45	29.0	16.3
SSM1203	M12X1	6mm	14.2	12.7	11.0	17.45	29.0	16.3
SSM1204	M12X1	8mm	15.8	13.5	11.0	17.45	30.0	16.3

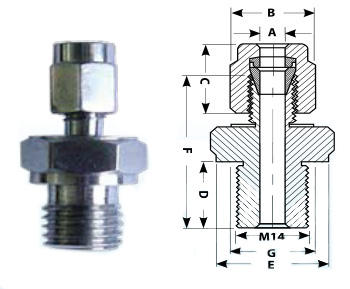

M14 SS 316/304 Metric Fittings


Part No.	Thread	A To Suit	B Nut A/F	C	D	E	F	G

SSM1401	M14x1.5	3MM	11.1	12.0	11	19.1	27.0	18.2
SSM1402	M14x1.5	9MM	17.5	14.2	11	19.1	30.0	18.2

M16 SS 316/304 Metric Fittings


Part No.	Thread	A To Suit	B Nut A/F	C	D	E	F	G

SSM1601	M16x1.5	6MM	14.2	12.7	11.0	22.2	28.5	1.4

M18 SS 316/304 Metric Fittings


Part No.	Thread	A To Suit	B Nut A/F	C	D	E	F	G

SSM1801	M18x1.5	6mm	14.2	12.7	11.0	22.2	28.5	21.4

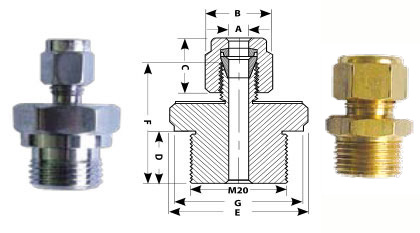

M20 SS 316/304 Metric Fittings


Part No.	Thread	A To Suit	B Nut A/F	C	D	E	F	G

SSM2001	M20x1.5	1.5mm	7.9	13.0	11.2	25.4	28.0	24.5
SSM2002	M20x1.5	3mm	11.1	13.5	11.2	25.4	28.0	24.5
SSM2003	M20x1.5	3/16"	12.7	12.0	11.2	25.4	31.7	24.5
SSM2004	M20x1.5	6mm	14.2	12.7	11.2	25.4	32.7	24.5
SSM2005	M20x1.5	8mm	16.0	13.5	11.2	25.4	33.7	24.5

M22 SS 316/304 Metric Fittings


Part No.	Thread	A To Suit	B Nut A/F	C	D	E	F	G

SSM2201	M22x2	3/8"	17.5	14.2	13.0	28.5	35.5	27.0

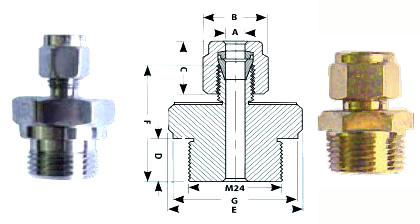

M24 SS 316/304 Metric Fittings


Part No.	Thread	A To Suit	B Nut A/F	C	D	E	F	G

SSM2401	M24x1.5	8mm	16.0	13.5	16.0	30.0	40.5	29.0

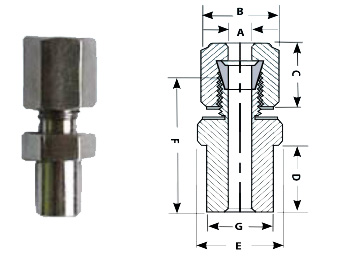

Stainless Steel (SS) 316 Blank Thread Fittings (Also Available In Brass)


Part No.	Thread	A To Suit	B Nut A/F	C	D	E	F

SSBTF01	1mm	12.0	12.5	10.0	12.0	26.0	8.0
SSBTF02	1.5mm	12.0	12.5	10.0	12.0	26.0	8.0
SSBTF03	2mm	12.0	12.5	10.0	12.0	26.0	8.0
SSBTF04	2.5mm	12.0	12.5	10.0	12.0	26.0	8.0
SSBTF05	3mm	12.0	12.5	10.0	12.0	26.0	8.0

Stainless Steel (SS) 316 Metric Counter Board Fittings (ALso Available In Brass)

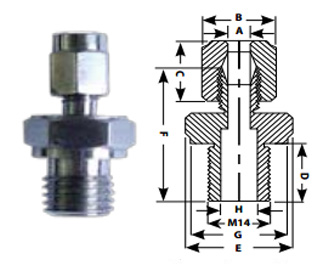

M14 SS 316/304 Metric Counter Bored Fittings


Part No.	Thread	A To Suit	B Nut A/F	C	D	E	F	G	H

SSMCB1401	M16x1.5	3mm	11.1	12.0	11.0	22.2	27.0	21.4	12.5
SSMCB1402	M16x1.5	4.5mm	12.7	12.0	11.0	22.2	28.0	21.4	12.5
SSMCB1403	M16x1.5	6mm	14.2	12.7	11.0	22.2	29.0	21.4	12.5

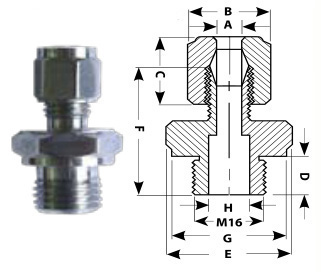

M16 SS 316/304 Metric Counter Bored Fittings


Part No.	Thread	A To Suit	B Nut A/F	C	D	E	F	G	H

SSMCB1601	M16x1.5	3mm	11.1	12.0	11.2	25.4	30.7	24.5	16.0
SSMCB1602	M16x1.5	4.5mm	12.7	12.0	11.2	25.4	31.7	24.5	16.0
SSMCB1603	M16x1.5	6mm	14.2	12.7	11.2	25.4	32.7	24.5	16.0

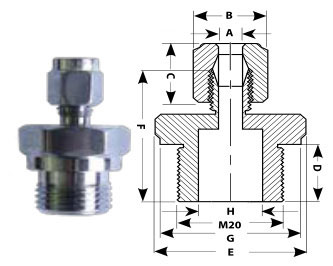

M20 SS 316/304 Metric Counter Bored Fittings


Part No.	Thread	A To Suit	B Nut A/F	C	D	E	F	G	H

SSMCB2001	M20x1.5	3mm	11.1	12.0	11.2	25.4	30.7	24.5	16.0
SSMCB2002	M20x1.5	4.5mm	12.7	12.0	11.2	25.4	31.7	24.5	16.0
SSMCB2003	M20x1.5	6mm	14.2	12.7	11.2	25.4	32.7	24.5	16.0

M24 SS 316/304 Metric Counter Bored Fittings


Part No.	Thread	A To Suit	B Nut A/F	C	D	E	F	G	H

SSMCB2401	M24x1.5	3mm	11.1	12.0	16.0	30.0	37.5	29.0	18.0
SSMCB2402	M24x1.5	4.5mm	12.7	12.0	16.0	30.0	38.5	29.0	18.0
SSMCB2403	M24x1.5	6mm	14.2	12.7	16.0	30.0	39.5	29.0	18.0

Stainless Stee(SS) 316/304 British Parallel (BSPP) Fittings (Also Available in Brass) (Equivalent to European G Thread)

Stainless Steel (SS) 316/304 British Tarered (BSPT) Fittings (Also Availale In Brass) (Equivalent to European R Thread)

Stainless Steel (SS) 316 American Pipe Thread (NPT) (Also Available In Brass)

Stainless Steel (SS) 316 Metric Fittings (Also Available In Brass)

Stainless Steel (SS) 316 Blank Thread Fittings (Also Available In Brass)

Stainless Steel (SS) 316 Metric Counter Board Fittings (ALso Available In Brass)

Stainless Stee(SS) 316/304 British Parallel (BSPP) Fittings (Also Available in Brass)
(Equivalent to European G Thread)
